So I’ve not done a great job of taking photos over the past week, but much of what I have done has been small happy-to-glad type changes on the plane. And I’ve been inspecting things over and over again. Both for the purpose of the final Airworthiness Inspection with the DAR, but also for my first flight. My DAR noted that he has found a lot of inspections have had bolts of the incorrect size, so Mike and I went over the plane in detail and identified some marginal bolt length contenders. I set about rectifying these. Some could be fixed by switching from a standard washer to a thin washer. Others needed a slightly longer bolt size (and naturally an order to Aircraft Spruce!). I rectified all of those.
In the process of full head to toe inspection, I found a variety of small squawks. A couple adel clamps needed further tightening firewall forward. A couple electrical connections at the busses where loose. Mike found a small squeak in the airplane controls – a very slight rub of the control column at just the right spot required me to raise the control column just slightly. I also noticed that the stick to aileron bell cranks seemed off center. Upon inspection it was clear that despite having done the aileron neutralizing procedure with the bell crank jig more than once it was not perfectly set to neutral. My only guess as to how this could be was when things were apart the rod ends must have spun on one of the push rods. Either way. I disconnected the controls, used the jigs on the aileron bell cranks one final time and got everything perfectly neutral. I also did a small adjustment on the right flap.

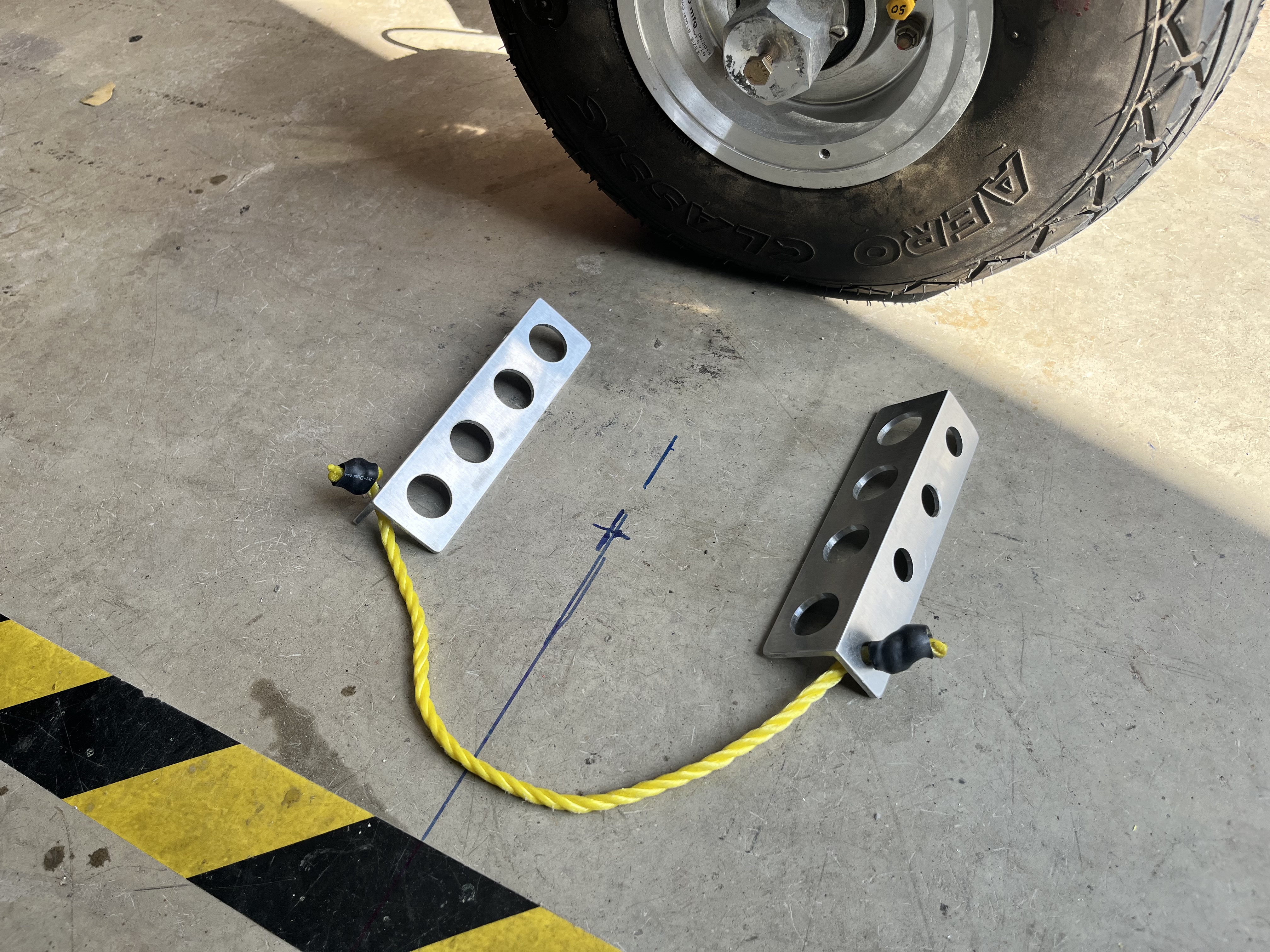

I spent entirely too much time making myself some chocks out of spare aluminum angle. I’m very happy with the result, but it definitely took too much time!

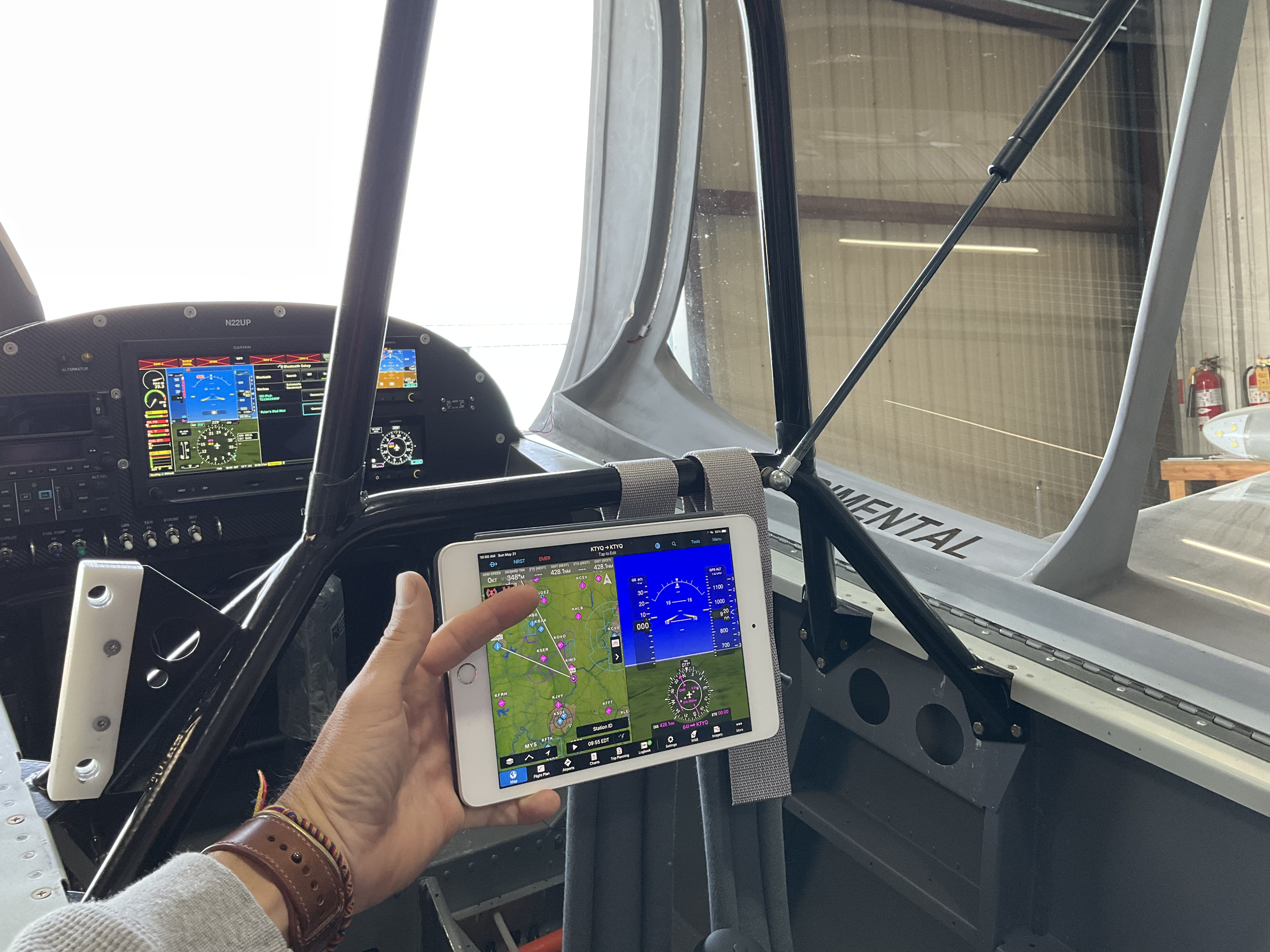

Just a quick shot here of what the back seat passenger will see once I have an iPad mount. The iPad is able to connect to the G3X system via bluetooth and this provides synthetic vision and navigation information. A cheap way to provide instruments to the GIB!
My niece stopped by with her two daughters. We have some future aviators in the making!

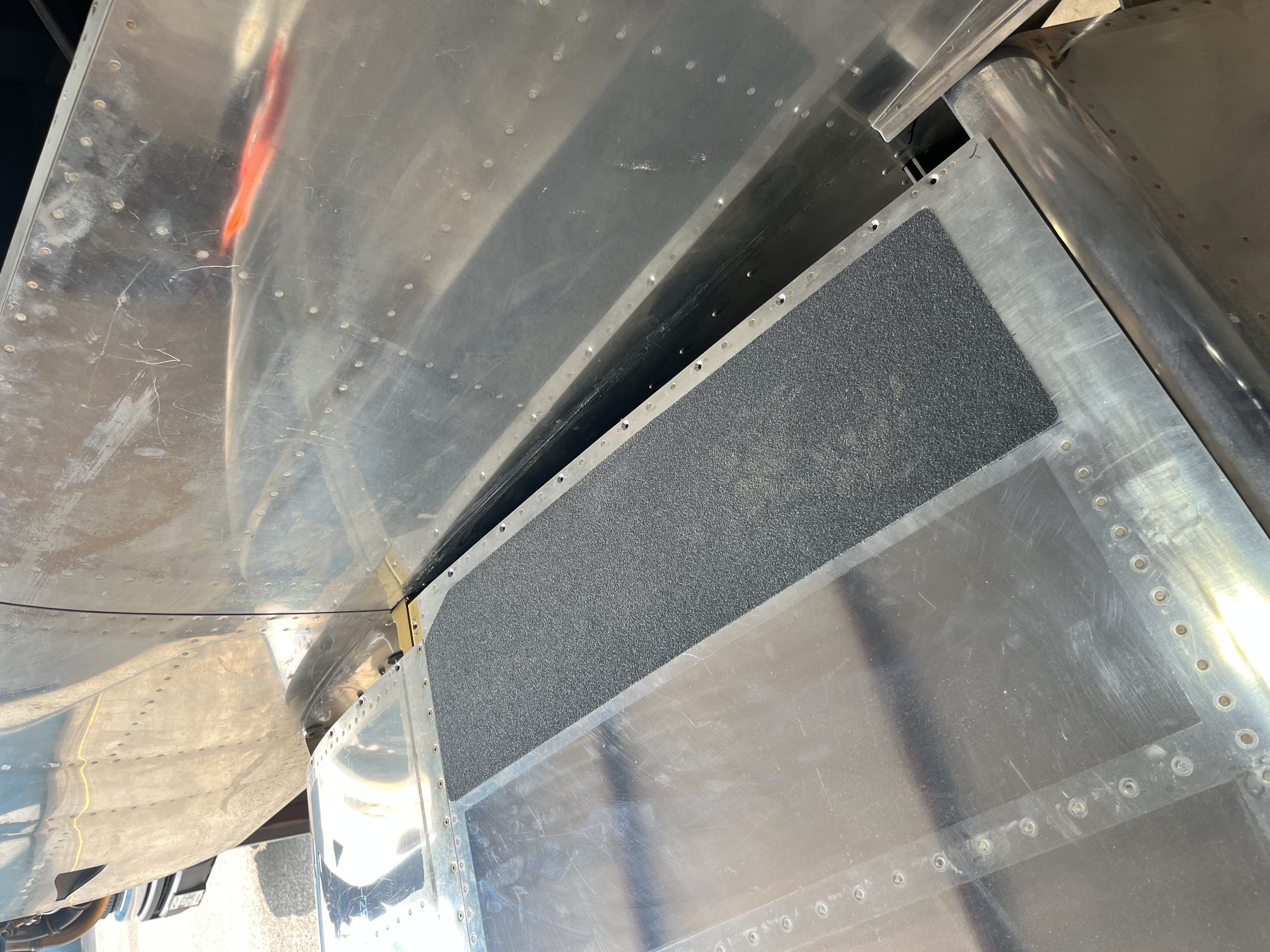

I’ve almost fallen on my wing a couple times. I bought some skateboard grip tape off of amazon and cut to fit the wing walk area. This is just temporary, as I will put a different solution in place once the plane is painted. I’m planning to have an outline of the wing walk area painted, and then I will use clear skateboard grip tape within that outline. I don’t like the black grip tape applications. But for now, this grey wing walk grip tape will make sure no one falls.
